In Depth
Baro Screen
This screen displays the barometric pressure in milibars together with the temperature in degrees Celsius, UTC date & time, next to a 24 hour graph showing their evolution.
Ranges set vary from 950 to 1050 mbar and from -20 to 50 degrees.
An automatic zoom maximizes the graph to show greater detail.
Pressure tendency values can be found below. A drop pressure alarm warns if it drops more than 4 mbar in 3 hours.
The Baro log is automatically saved everyday: a sample is taken every 15 minutes (96 samples/day).
GPS Screen
Here you will find the GPS info: UTC date & time at the top, the lat/long coordinates, flags and speed positioning, COG, magnetic bearing, number of used/visible satellites, the current horizontal precision and the GPS date/time.
Sail Screen
Here you can find the useful data you need when sailing or in regatta:
GPS time, lat/long coords., COG, speed, mag. bearing, pitch/roll values, speed graph, and the supported G-force or acceleration graph by the vessel in the axes Bow-Stern, Starboard-Port and Z (up/down).
Ultratrack Screen
This screen is for those sailors going a bit further in a regatta. Currently it is a subscreen derived from the sail screen.
The GPS time, lat/long coordinates, COG, speed and Pitch/Roll values are also shown, while the G-force or acceleration are graphically shown in an inertial box shape. The Z axis data is shown in a vertical slider and the G or acceleration values are numerically presented.
A tack speed slider in deg/s is added, and a composed vector force value (Bow - starboard/Port) is also shown.
Tools Screen
This screen contains the most used tools , like Anchor fence activation , Nmea transparent mode , LCD Bright , System Placement , Auto Zero , Black Box , the G/Accel unit adjust , and the acces to the setup screen .
In the right top a Baterry level indicator.
Setup Screen
This screen enables access to :
- The SD Logging activation.
- The GPS coordinates mode (degrees, minutes, seconds or degrees , minutes and minute tenth.
- The update of internal UTC date/time clock by GPS.
- The regatta mode set.
- The access point On/Off.
- The anchor distance set.
- The date/time adjust.
- The system calibration.

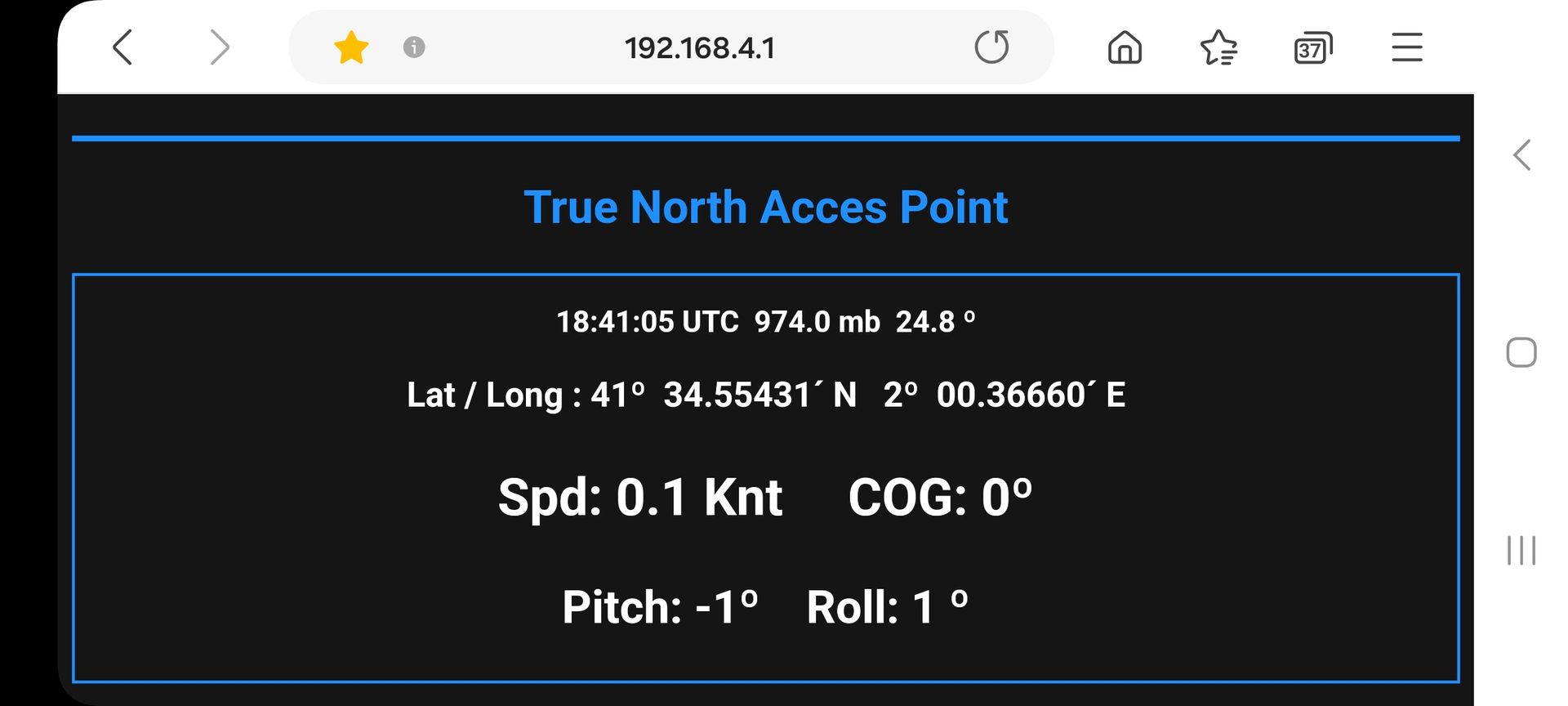

Access Point Screen
It offers basic Sail Information :
- UTC hour.
- Pressure & Temp.
- Lat/Long Coordinates.
- Speed.
- Cog
- Pitch & Roll values.
Technical specifications
Barometer
Absolute range : 260 hPa to 1260 hPa
Used range : 950 hPa to 1050 hPa.
Precision : 0.5 hPa
Temp compensated.
Enclosed in protective gel.
Thermometer
Absolute range : -40 to +85°C
Used range : -20 to +50º.
Precision : ±1.5 °C
Enclosed in protective gel.
UTC Clock
Internal oscillator precision ±2 ppm from 0°C to +40°C , ±3.5 ppm from -40°C to +85°C (error ±0.3024 sec/day).
Internal backup battery.
GPS
GNSS multi protocol , three system concurrent reception (GPS, Galileo, GLONASS y BeiDou).
Bands : GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
72 simultaneous channel reception.
Sensibility -167 dBm.
Temperature compensated internal oscillator.
Horizontal Precision : GPS & GLONASS 2.5 m , GPS 2.5 m , GLONASS 4 m , BeiDou 3 m , Galileo 3 m.
System Battery LiPo
Lithium polymer , 3.7V rechargeable , 4000 mA/h
Approx runtime : 11h LCD 50% , 7 h LCD 100% and Access Point active.
Backup Battery
Type ML1220 , 3V rechargeable , 18 mA/h.
LCD
4.0 Inches , 480 x 800 pixels, 16.7 M Colours, Capacitive Touch.
Led Backlight.
Bright : 350 Nit
USB
USB 2.0 compliant , full-speed , 12 Mbps
Com Interface 115.000 baud , 8 data bit , no parity 1 stop bit
Wifi Access Point
Modes supported : 11 b/g/n
Baseband 2.4 GHz
Max speed 150 Mbps
Micro SD
Supported file system : FAT32.
Max storage capacity supported : 32Gb.
Minimum speed class : Class 10 / U1 (UHS Speed Class 1): write speed (10 MB/s).
Dimensions
191 x 123 x 33 cm (L x H x W).
Weight 480 g.
